PULSE Li-ion Battery Core Short Circuit Tester is a full-process short circuit tester in the form of a pulse waveform for testing Li-ion battery cells. It can realize the whole process of monitoring the voltage test waveform, capture the transient abnormal discharge process, and identify microsecond occurrences of short- circuit and micro-short-circuit cell defects that are difficult to recognize under normal conditions.
RJ69XX is widely used for (micro) short circuit testing in winding, stacking, cell assembly and before liquid injection, which greatly improves the testing efficiency of the production line; it can be applied to the testing of different types of battery cells for Li-ion batteries, nickel-hydrogen batteries, supercapacitors, sodium-ion batteries and other products.
l Pulse waveform full-process detection identifies localized transient (micro) short-circuit discharges;
l 50V-2000V Voltage setting;
l Wide range compatibility test;
l Multi-channel testing function, which can realize the testing of positive and negative poles, positive shells and between negative shells;
l The testing process can be controlled independently in segments, and the voltage drop in each process of boosting, holding and free discharging can be detected and determined independently;
l Extremely quick automatic charging and discharging process, millisecond level testing, high testing efficiency;

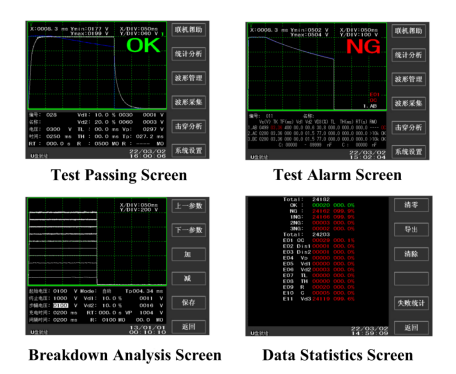

l Breakdown analysis BDVD, can realize the intrinsic breakdown characteristic detection of the tested products;
l Data storage: Local storage of failed DUT waveforms and test data, and USB flash drive storage;
l Compatible with insulation resistance, weak conduction resistance, and capacitance value test function.
Model | RJ69XX |
Voltage Output | Range:50V~2000V | Resolution :1V | Accuracy: ±(1%st.+2dgt.) |
Capacity of Cell | 120000nF |
|
|
Capacitance Test | Range:1nF-12000nF | Resolution:1nF | Accuracy :±(0.5%+2dgt.) |
Pulse Waveform Test Time | Range:20ms~1000ms | Step:1ms | Accuracy: ±(0.5%st.+2dgt.) |
Insulation Resistance Test | 50V-300V 301V-700V 701V-1150V 1151V-2000V | 2.0MΩ-99.9MΩ 2MΩ-2000MΩ 5MΩ-3000MΩ 10MΩ-4000MΩ 4001MΩ-9999MΩ | ±(2%rdg.+2dgt.) ±(3%rdg.+2dgt.) ±(4%rdg.+2dgt.) ±(5%rdg.+2dgt.) ±(15%rdg.) |
Insulation Resistance Test time | 0.1s~999.9s Accuracy: ±(0.1%st.+0.1dgt.) |
Discharge resistance | 10kΩ |
Liquid crystal display | 5.6 inch |
Measuring channels | 1CH/3CH |
Judgment parameters | Charging Time Tp, Output Voltage Vp, Drop Voltage Vd, Insulation Resistance R, Capacitance Test C |
Special Function | Holding time TK, Free discharge time TF independent setting |
Test Mode | Voltage maintenance, free discharge |
Extended Functions | Automatic detection, breakdown analysis |
External Interfaces | Standard: PLC (switching), RS232, USB storage; optional: LAN interface, RS485 |
Operating Environment | 0℃~40℃,20%RH~70%RH |
Power Supply | AC220V,50/60Hz,200VA |
Weight | 10.7kg |
External Dimension | 340mm×133mm×380mm(W×H×D) excluding the feet height, the feet height is15mm. |
Accompanying documents and Accessories | 1 instruction manual, 1 power cord (1.5 m), 1 communication cable (1.5 m), 1 test cable (1.5m) |
